Compare Smartstitch Embroidery Machines
Every Smartstitch model delivers professional flat embroidery and 270° cap embroidery. Compare needle count, embroidery area, guiding structure, workspace requirements, and production capacity to find the machine that fits the way you work.
Professional Features Included on Every Model
Up to 1,200 SPM
Every model can reach embroidery speeds of up to 1,200 stitches per minute for both flat and cap embroidery.
New-Generation V7 Smart Control System
All models feature the same latest-generation control system with automatic color change, automatic trimming, thread-break detection, power-loss recovery, design preview, speed adjustment, and more.
Professional Flat & 270° Cap Embroidery
Every model is designed to deliver reliable results on caps, garments, jackets, bags, patches, shoes, and other custom products.
Wi-Fi, USB & Laser Positioning
Transfer DST and DSB designs through Wi-Fi or USB and use laser positioning to help place designs more accurately.
Two Needle Plates Included
Each embroidery head includes one Flat Needle Plate and one Raised Needle Plate for flat, curved, and non-flat embroidery applications.
Training & Technical Support
Every new machine and every pre-owned machine sold through our official website includes access to the same training and technical support system.
Find the Model That Fits Your Business
All models support professional flat and cap embroidery. The main differences are embroidery area, guiding structure, machine platform, and production capacity.

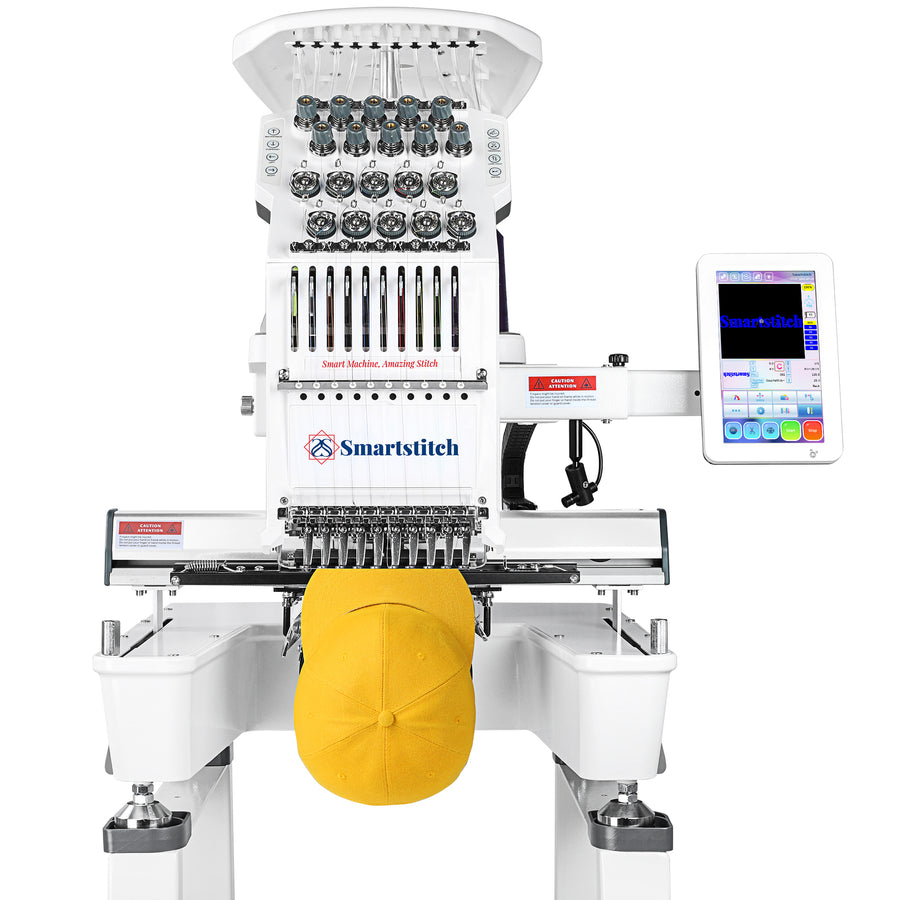

S-1001
A space-conscious multi-needle machine for everyday custom embroidery, small-batch production, and flexible workspaces.

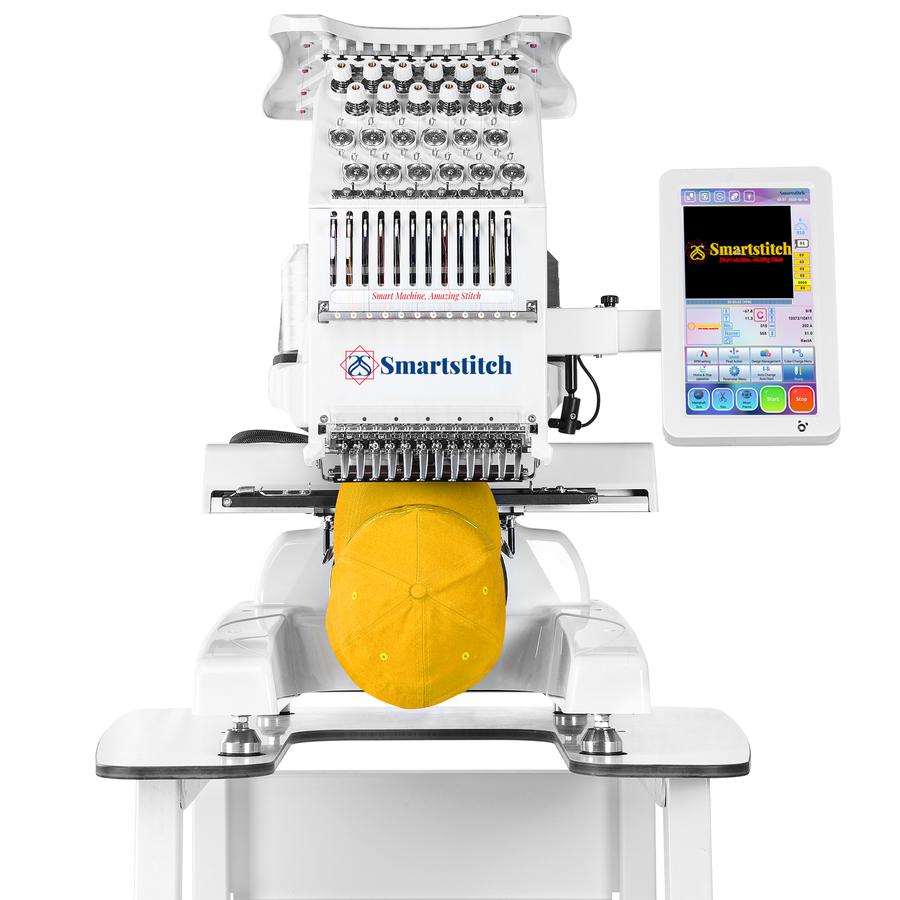

S-1201
A compact 12-needle machine with a larger 10-inch touchscreen for users who want more thread colors ready at once.

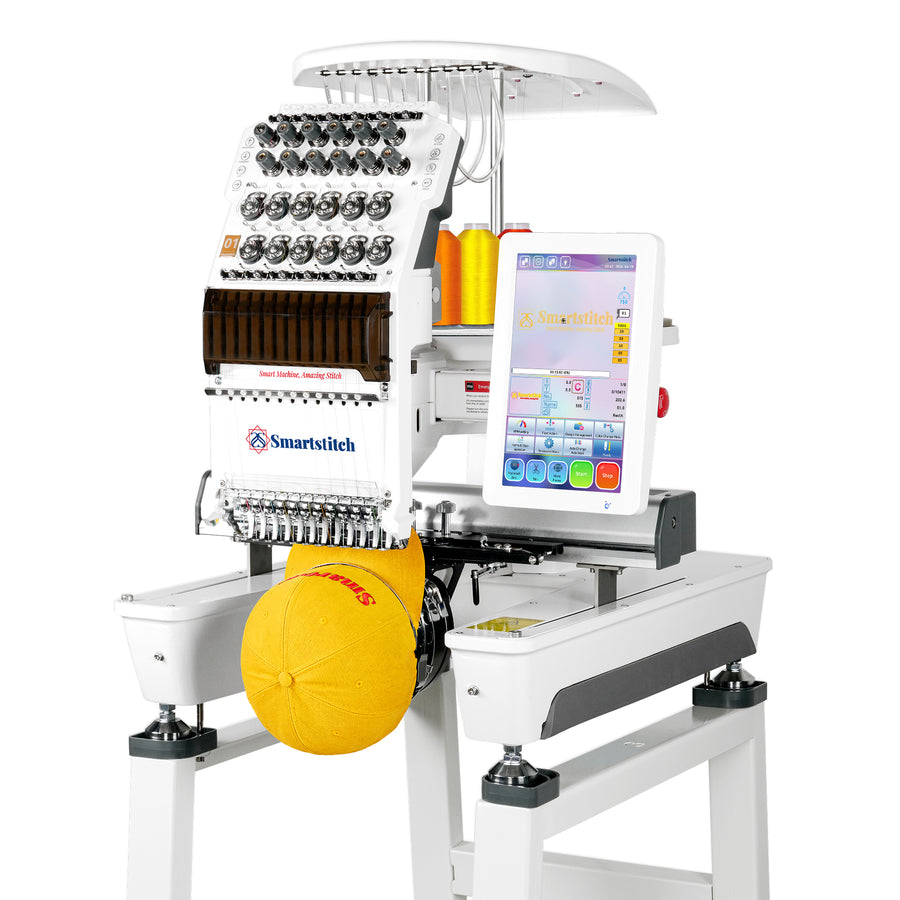

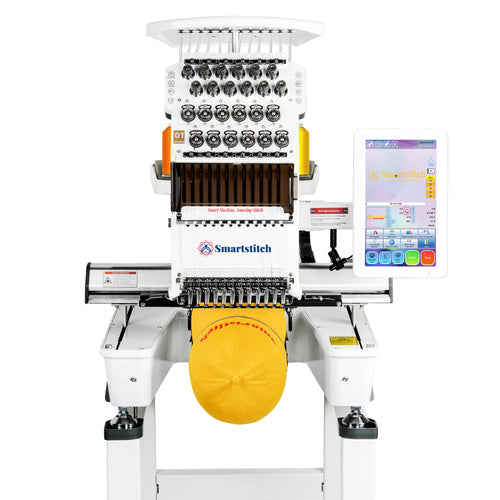

S-1201 Plus
A fully upgraded mechanical platform with a larger embroidery area, Direct Vertical Guiding System, improved stability, quieter operation, and higher embroidery precision.

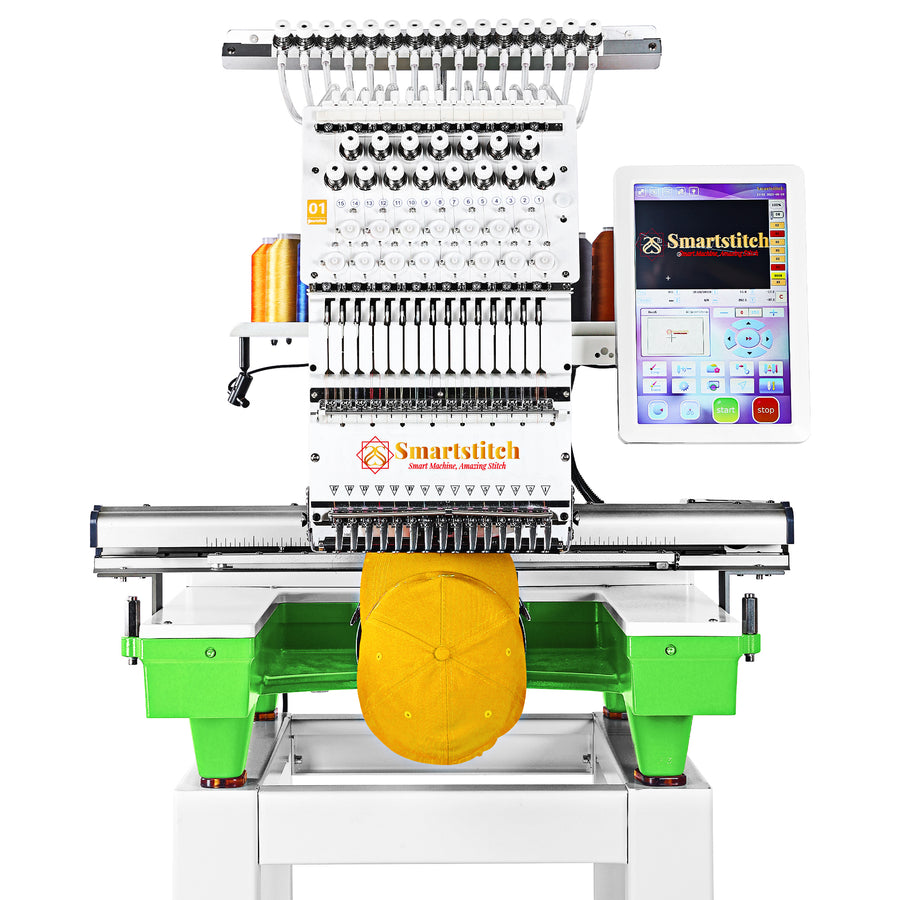

S-1501
A proven standard 15-needle commercial configuration for businesses producing caps, apparel, jackets, bags, patches, and mixed custom orders.

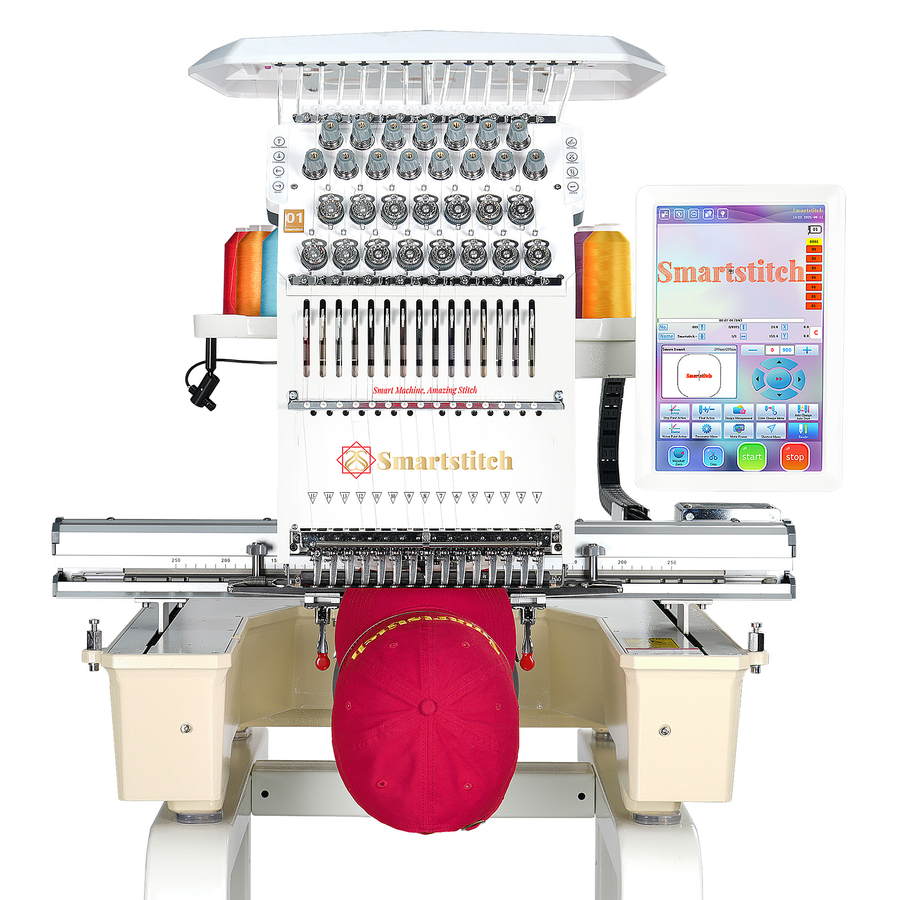

S-1501 Ultra
A high-performance 15-needle model featuring a Double Vertical Guiding System, redesigned base and machine structure, upgraded Cap Driver, and expanded 78 mm cap embroidery height.

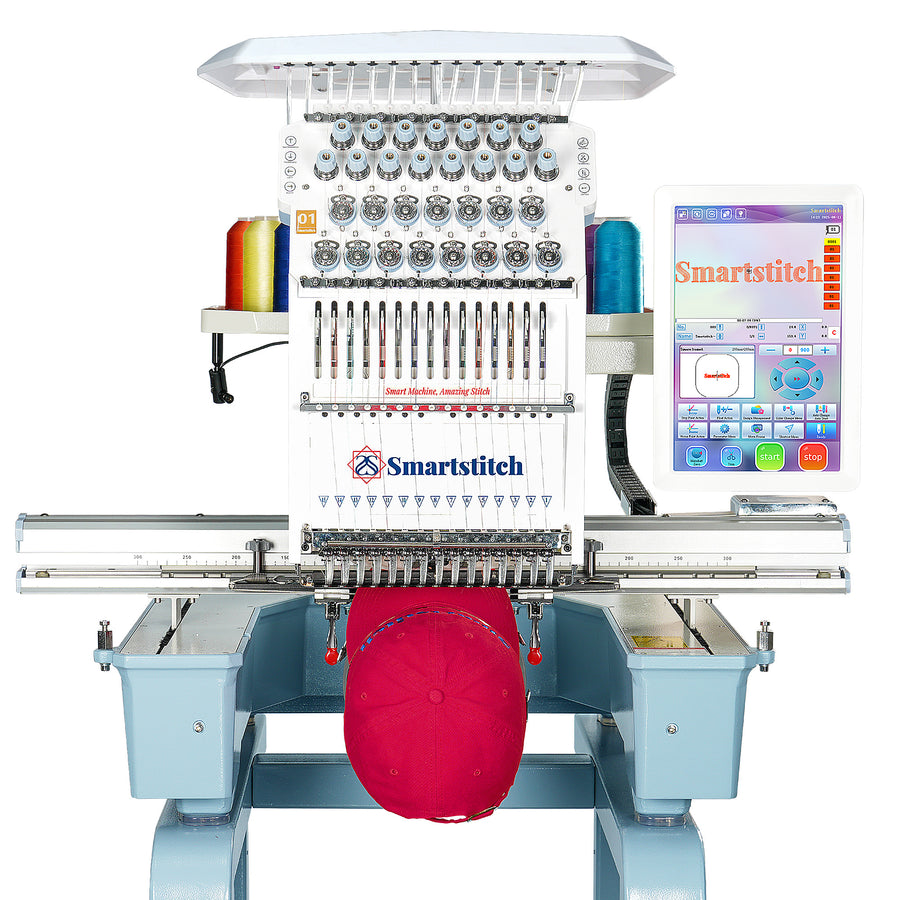

S-1501 Plus
Our flagship single-head model combines the enhanced mechanical platform of the S-1501 Ultra with a larger 400 × 600 mm embroidery area.

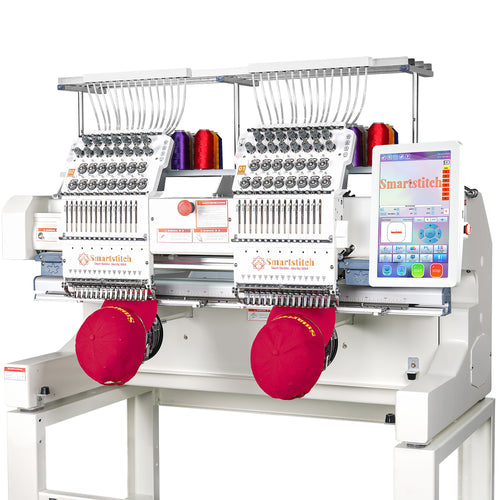

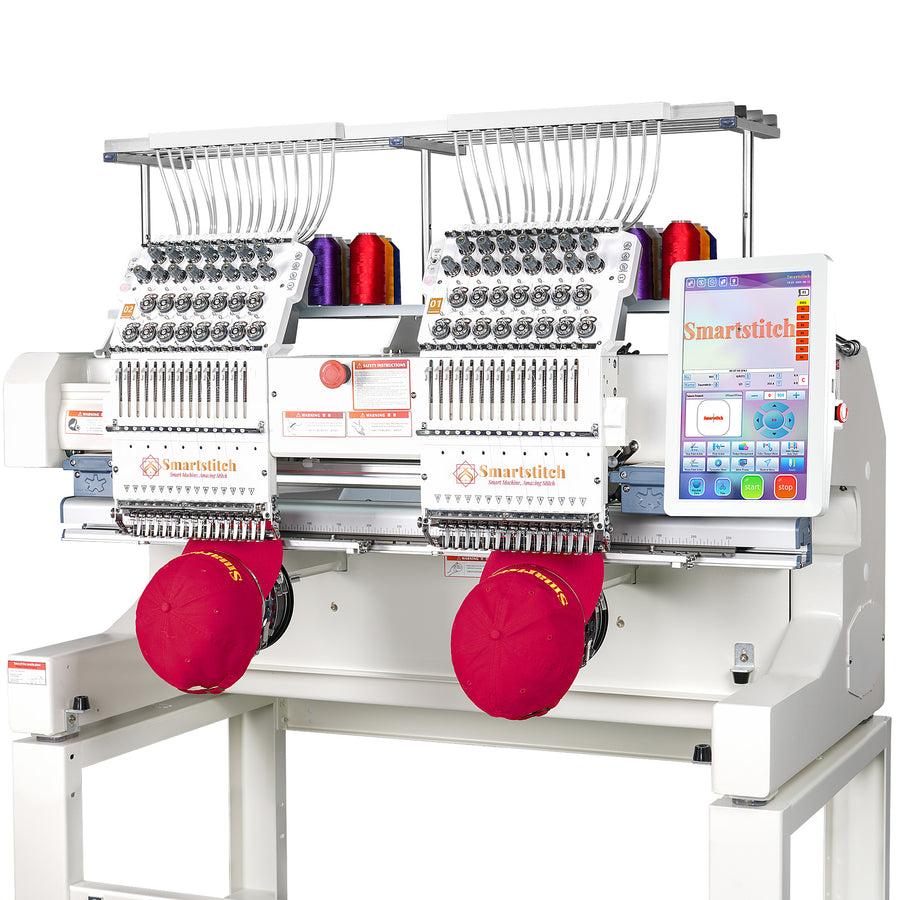

S-1502 HC
Produce two matching items with the same design at the same time, or turn off one embroidery head when only one item needs to be produced.
Quick Comparison
| Model | S-1001 | S-1201 | S-1201 Plus | S-1501 | S-1501 Ultra | S-1501 Plus | S-1502 HC |
|---|---|---|---|---|---|---|---|
| Best For | Compact multi-needle embroidery | Compact 12-needle flexibility | Upgraded 12-needle performance | Classic 15-needle commercial use | Enhanced flat & cap performance | Flagship single-head performance | Dual-head batch production |
| Heads | 1 | 1 | 1 | 1 | 1 | 1 | 2 |
| Needles per Head | 10 | 12 | 12 | 15 | 15 | 15 | 15 |
| Maximum Embroidery Area | 240 × 360 mm | 240 × 320 mm | 300 × 400 mm | 350 × 500 mm | 350 × 500 mm | 400 × 600 mm | 400 × 500 mm per head |
| Maximum Cap Embroidery Height | 75 mm | 75 mm | 75 mm | 75 mm | 78 mm | 78 mm | 75 mm |
| Screen Size | 7″ | 10″ | 10″ | 12″ | 12″ | 12″ | 12″ |
| Guiding System | Shaft Guiding System | Shaft Guiding System | Direct Vertical Guiding System | Shaft Guiding System | Double Vertical Guiding System | Double Vertical Guiding System | Shaft Guiding System |
| Trimming Structure | Picker-Free | Picker-Free | Picker-Free | With Picker | Picker-Free | Picker-Free | With Picker |
| Cap Driver | Standard | Standard | Standard | Standard | Upgraded | Upgraded | One per Head |
| Machine Weight | 42 kg / 93 lb | 39 kg / 86 lb | 52 kg / 114.6 lb | 95 kg / 209 lb | 80 kg / 176 lb | 85 kg / 187 lb | 350 kg / 772 lb |
| Product Link | View Details | View Details | View Details | View Details | View Details | View Details | View Details |
Understanding the Guiding Systems
Shaft Guiding System
A proven mechanical guiding structure designed for reliable everyday embroidery.
Direct Vertical Guiding System
The Direct Vertical Guiding System provides more controlled X- and Y-axis movement, helping improve embroidery precision, machine stability, high-speed performance, and operating noise.
Double Vertical Guiding System
The Double Vertical Guiding System provides additional support for X- and Y-axis movement, helping improve high-speed stability, stitch consistency, small-letter performance, cap embroidery, thick-material embroidery, and long-term mechanical durability.
Professional Cap Embroidery Across Every Model
Every Smartstitch model supports professional 270° cap embroidery. The differences between models relate to mechanical structure, guiding systems, trimming structure, Cap Driver design, and maximum cap embroidery height.
75 mm Cap Embroidery Height
S-1001, S-1201, S-1201 Plus, S-1501, and S-1502 HC provide a maximum cap embroidery height of 75 mm.
Expanded 78 mm Cap Embroidery Height
S-1501 Ultra and S-1501 Plus combine a picker-free trimming structure, redesigned machine-head clearance, reinforced base, and upgraded cap embroidery system to provide an expanded maximum cap embroidery height of 78 mm.
S-1201 or S-1201 Plus?
Both models have 12 needles and a 10-inch touchscreen, but they are built on different mechanical platforms.
- S-1201: A compact 12-needle machine for users who want more thread colors in a flexible setup.
- S-1201 Plus: A fully upgraded 12-needle platform with a larger embroidery area, Direct Vertical Guiding System, reduced operating noise, improved stability, and enhanced embroidery precision.
Which S-1501 Model Is Right for You?
- S-1501: A proven standard 15-needle commercial machine for everyday production.
- S-1501 Ultra: Adds a Double Vertical Guiding System, redesigned structure, upgraded Cap Driver, and 78 mm cap embroidery height.
- S-1501 Plus: Uses the same enhanced platform as the Ultra and expands the embroidery area to 400 × 600 mm.
S-1502 HC for Batch Production
S-1502 HC allows both embroidery heads to stitch the same design at the same time, helping businesses produce matching items more efficiently.
- 15 needles per head
- 400 × 500 mm embroidery area per head
- One embroidery head can be turned off when only one item needs to be produced
Support After Your Purchase
Every new machine and every pre-owned machine sold through our official website includes access to the same training and technical support system.
Complete Training
Step-by-step support helps users understand machine setup, operation, and the process of getting started more smoothly.
Dedicated Technical Support
Join a dedicated technical support group and receive ongoing assistance from our embroidery machine support team.
Local Technical Coverage
Technical support coverage is available across most of the United States, with service availability depending on location.
Local Parts Availability
Most commonly used replacement parts are stocked in the United States. When a part is not available locally, it can generally be delivered from China within approximately one week.
